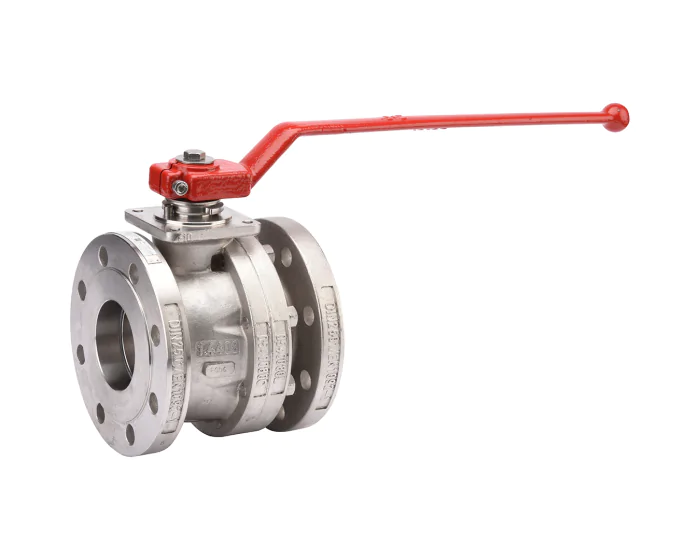

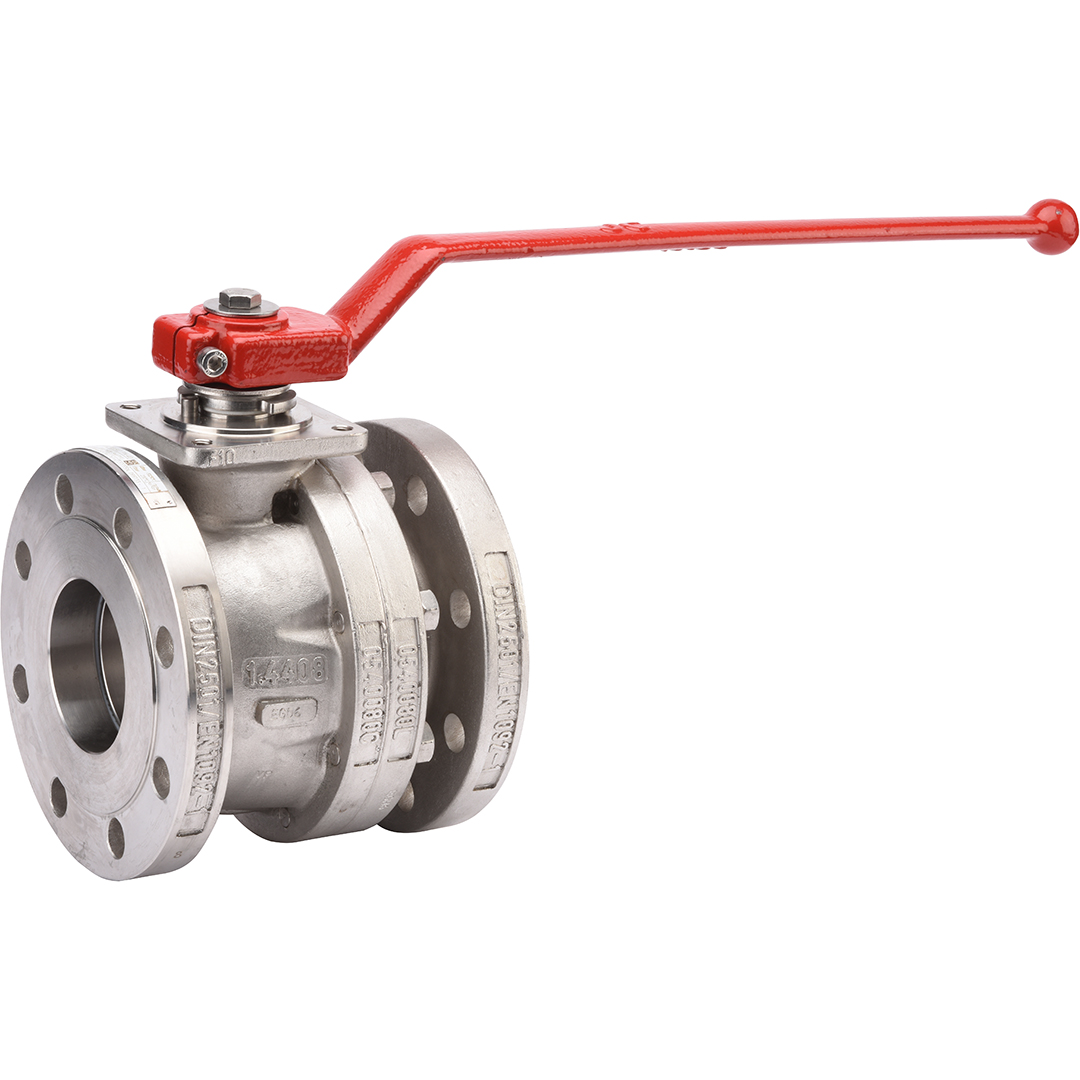

The Sferaco 540IIGF series ball valve, 2-piece body in stainless steel with glass-filled PTFE seat, PN40 flanged attachment, short DIN, Split Body JC range, fire safe, ATEX compatible.
| Specification | Value |
|---|---|
| DN inches NPS | 2''1/2 |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - EN 12516 |
| CE risk category | IV Module H1 |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Brand | JC VALVES |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Square, star (mm) | MEP M22x16 |
| ATEX compatible | Yes |
| Torque (Nm) | 76 |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 550 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 516IIGF065 | S1006890 |
€770.04
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 516IIGF080 | S1006891 |
€1,048.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 516IIGF100 | S1006892 |
€1,476.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5'' | 516IIGF125 | S1006893 |
€2,601.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 516IIGF150 | S1006894 |
€3,603.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 516IIGF200 | S1006895 |
€6,004.43
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN250 - 10'' | 516IIGF250 | S1006896 |
€11,417.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN300 - 12'' | 516IIGF300 | S1006897 |
€18,761.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 540IIGF015 | S1006898 |
€201.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 540IIGF020 | S1006899 |
€230.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 540IIGF025 | S1006900 |
€262.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4 | 540IIGF032 | S1006901 |
€391.43
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 540IIGF040 | S1006902 |
€467.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 540IIGF050 | S1006903 |
€601.67
(excl. btw)
|
add to cart |
